JETDiV, 75 - 600 W, AC - DC/DC, without flanges, BRICK form factors, mission-critical application

The series units, besides standard operation in a vast class of radioelectronic and electrical equipment, are meant to be used in critical missions: operation in emergency conditions, operation in case of compromised sealing of the equipment compartment, short-term higher than max power delivery, short-term full operation during surge or drop of input voltage.

AEPS-GROUP power converters of JETDiV series are provided in BRICK form factors, with counterbored mounting holes. Mainly meant for DC input mains of 150 (82-200 VDC, surge 230 VDC) and 270 (155-400 VDC, surge 450 VDC) for higher power models. Providing output power up to 600 W in standard case operating temperature range of -60 °С … +110 °С.

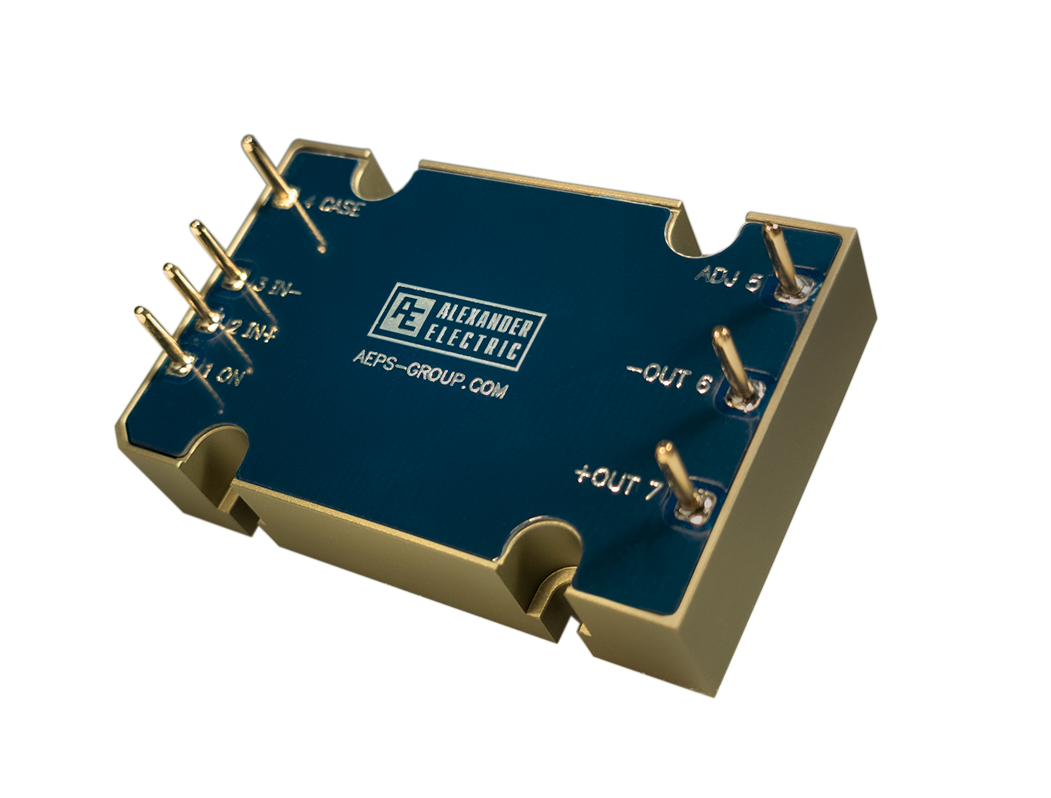

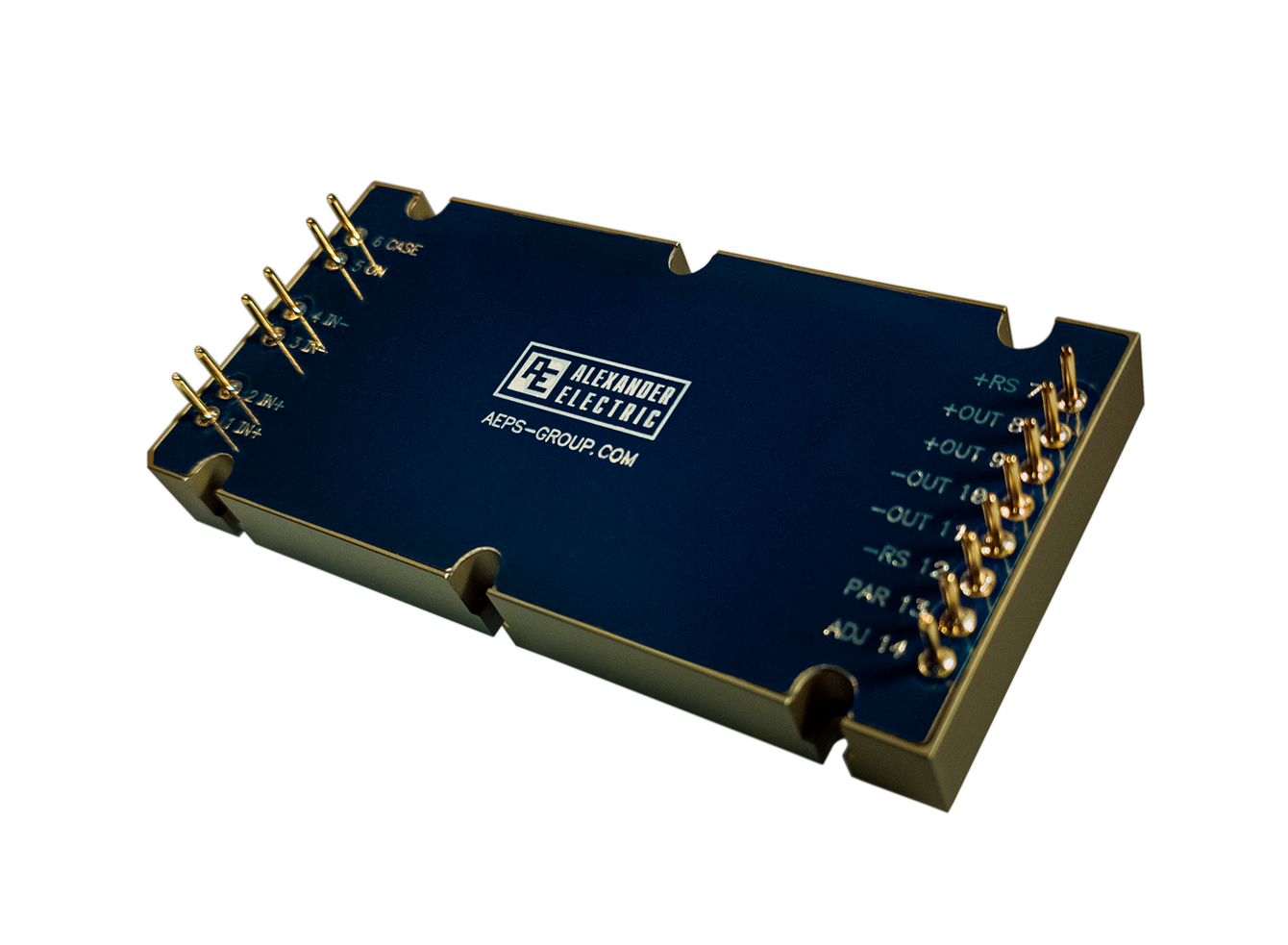

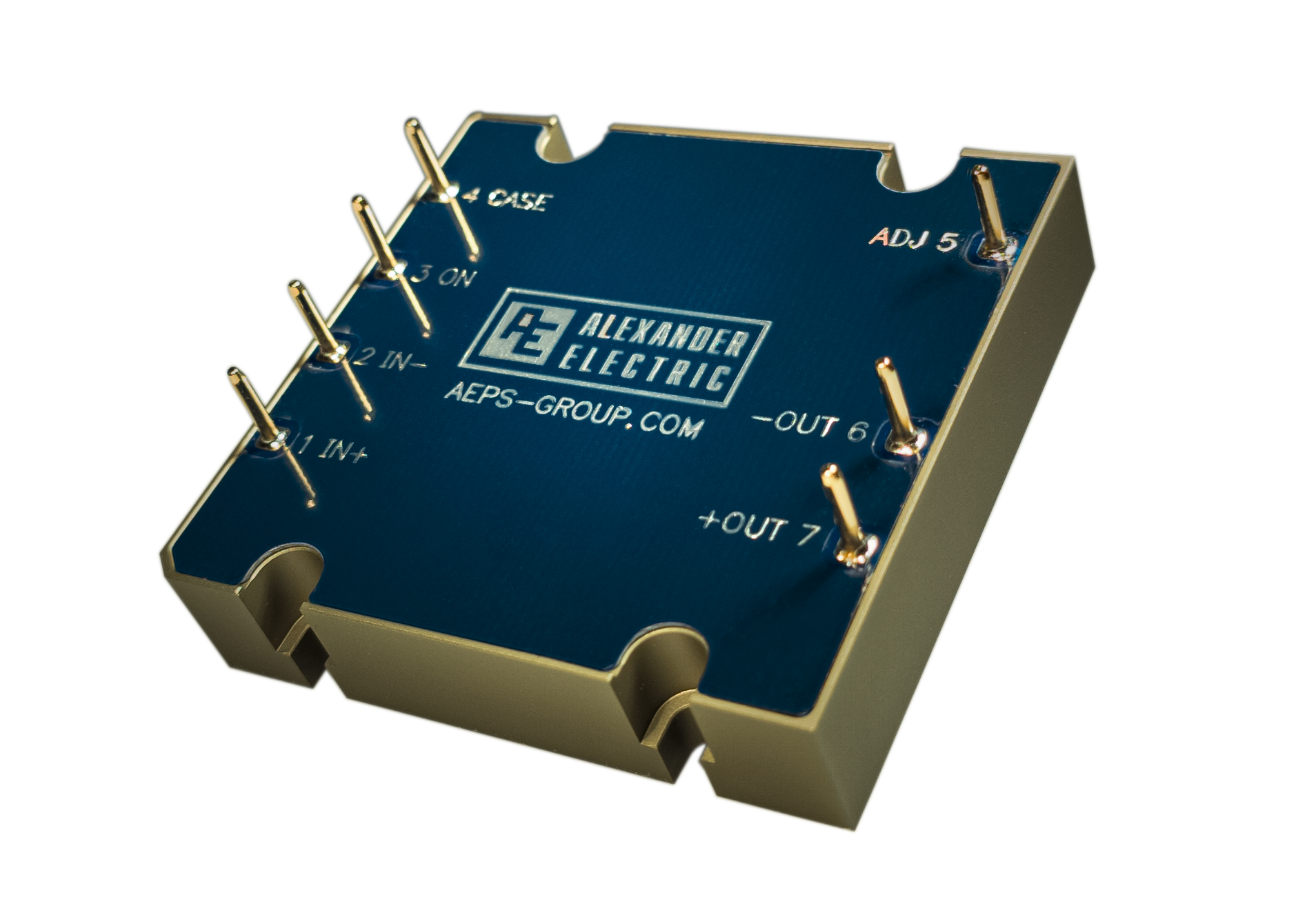

Unique feature of the series is their construction with counterbored mounting holes, making them the most compact among other types of products.

Electrical features: The power supplies have the standard range of service functions, including parallel operation in high-power models. Efficiency of up to 90 % makes possible operation with up to +110°C of case temperature.

Constructional features: JETDiV series presents small dimensions and high power density up to 82 W/in³ . Reinforced aluminum units cases contain open-slot mounting holes allowing certain freedom in choosing of mounting coordinates. Case base has stiffening ribs and also serves for conductive cooling. Considering that all components are constructively connected to the base and submerged in heat-transferring potting – resistance to and durability against mechanical stress is unique.

AEPS-GROUP JETDiV units are optimal to be utilized in application fields 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 – for aerial objects at heights up to 15 km in unsealed and unprotected spaces: planes, drones, helicopters, hot air balloons and gliding devices, meteoprobes. Also applied in all types of land transport – railway locomotives and wagons, cars, tracked vehicles. The units are also an optimal fit for telecom equipment, mining, supercomputers, radars and informational displays and screens, located in outdoors conditions. At the same time, JETDiV units operate in Arctic and Antarctica, in mountains at all heights and in cold or hot deserts etc.

To know more, read following essays: About input ranges, About efficiency, About planarity.
