DC/DC VPT replacement

These power supplies are a functional analogue of the famous modules from the VPT company, replacing them in a number of parameters. This family of products is born from custom development that drop in directly to replace VPT DC/DC units while keeping all external and mounting dimensions the same for easy direct integration. If you have a particular need to replace one of the VPT units please contact us!

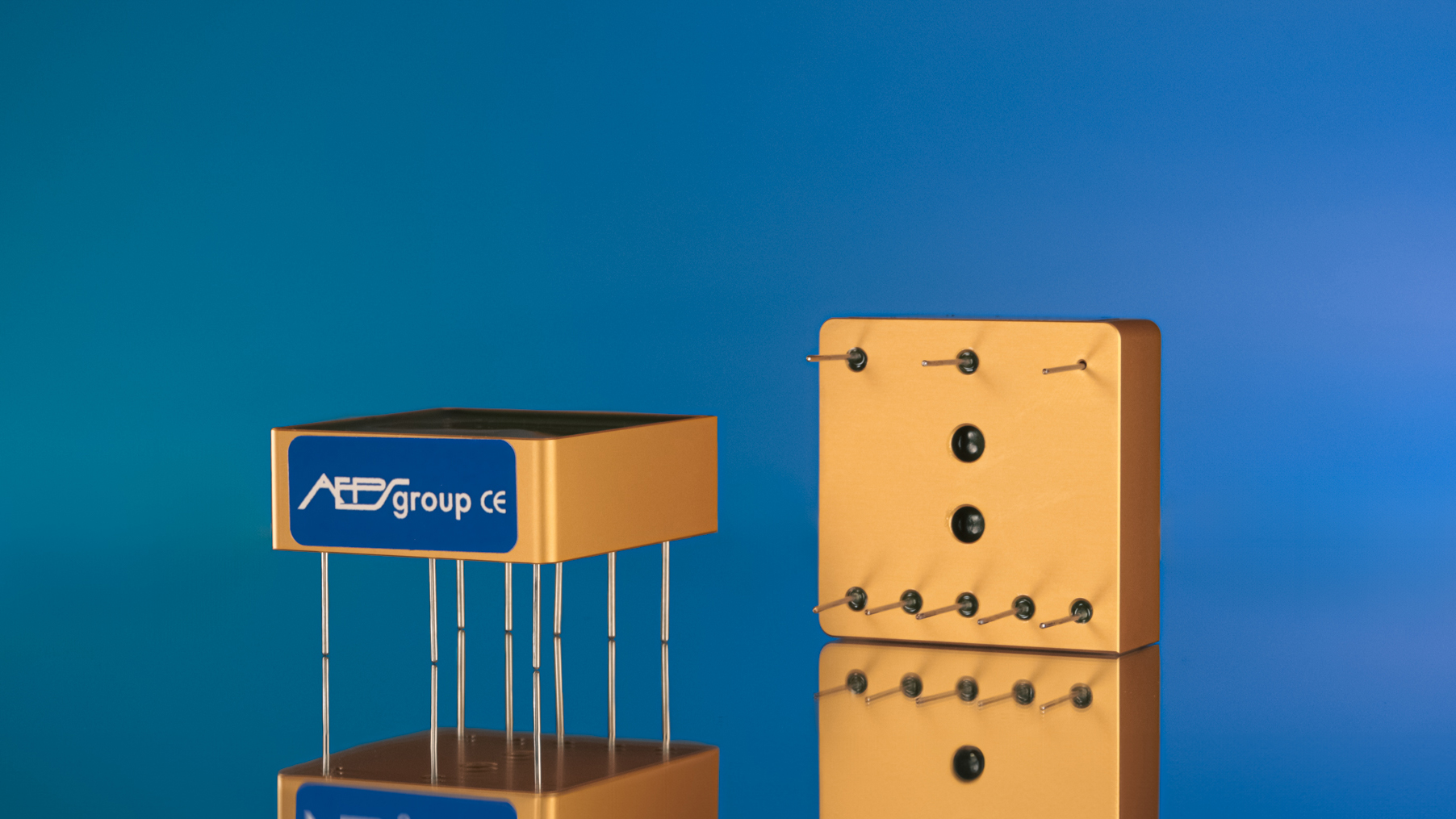

JETPT6-P1 (DVSA28xxxx)

Output power up to 4.2 W
Power density up to 10 W/In³
Efficiency up to 87 %
Dimensions of 27.3x27.3x10 (mm)
Case temperature range -60° to +125° C
Request units PDF Datasheet

JETPTF10-P2 (DVMD28)

Output power up to 10 W
Power density up to 10 W/In³
Efficiency up to 85 %
Dimensions of 49.5x34.3x10.54 (mm)
Case temperature range -60° to +130° C
Request units PDF Datasheet

JETPT30-P2F (DVTR28515TF)

Output power up to 15 W
Power density up to 10 W/In³
Efficiency up to 84 %
Dimensions of 69.1x34.3x10.5 (mm)
Case temperature range -60° to +125° C
Request units PDF Datasheet

JETPT40-P3-V2 (DVTR285R2S)

Output power up to 31.2 W
Power density up to 30 W/In³
Efficiency up to 85 %
Dimensions of 73.4x28.6x10.3 (mm)
Case temperature range -60° to +125° C
Request units PDF Datasheet

JETPTF20-PX1 (DVME28)

Output power up to 20 W
Power density up to 11 W/In³
Efficiency up to 85 %
Dimensions of 76.3x38.2x10.16 (mm)
Case temperature range -60° to +130° C
Request units PDF Datasheet
