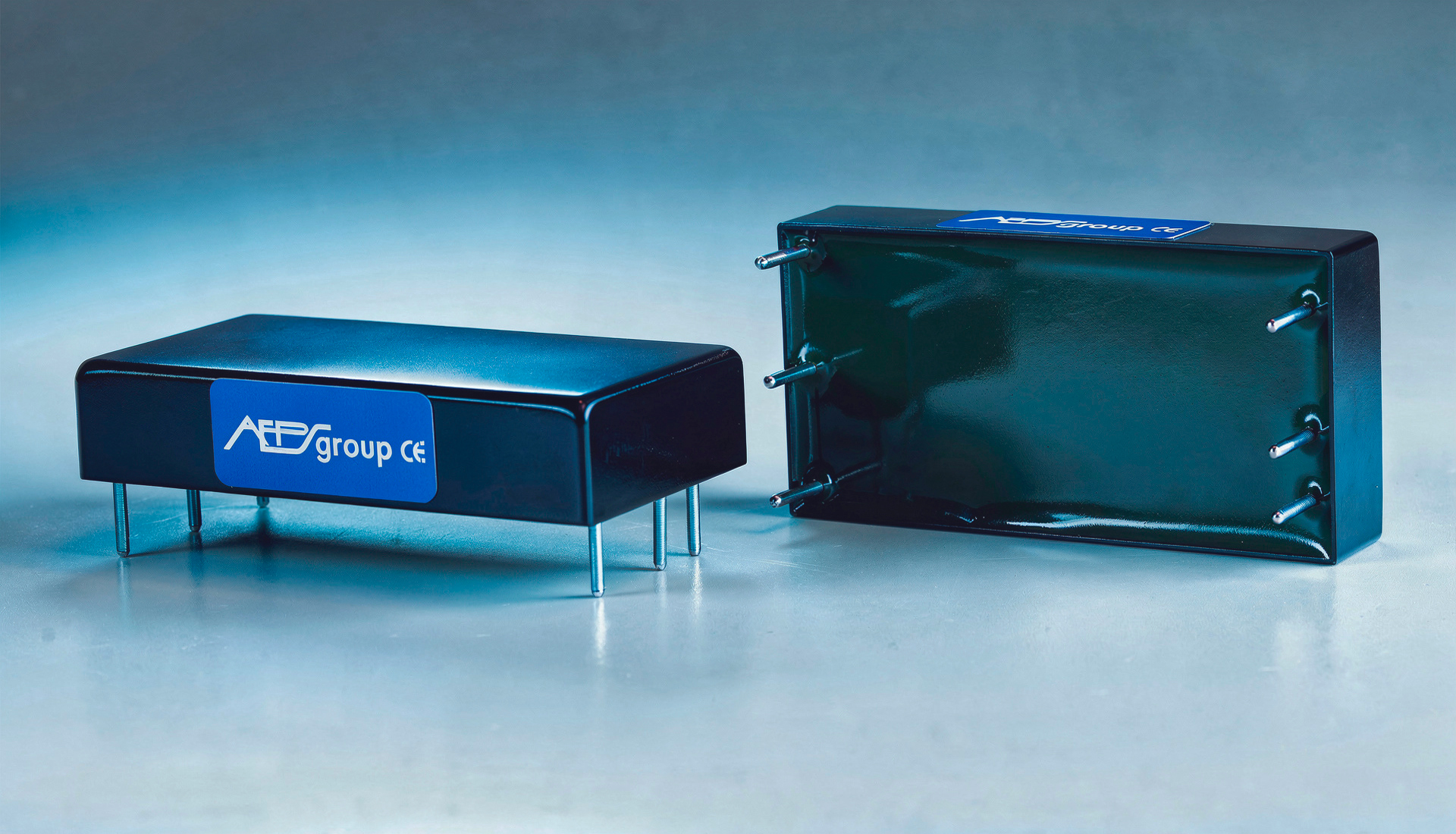

JETDi150-C4

Up to 150 W nominal output power

Power density up to 105 W/In³

Efficiency up to 92 %

58x37x11 mm

Case temperature range -60° to +125° C

Input voltage range	Output voltage
28W (16-50 VDC, 80 VDC transient), also available 48W, 48 inputs	3.3, 5, 12, 15, 24, 27, 36, 48 VDC

Input voltage range

Output voltage

28W (16-50 VDC, 80 VDC transient),

also available 48W, 48 inputs

3.3, 5, 12, 15, 24, 27, 36, 48 VDC
